UVC Sanitation DEVICES
Reduce airborne virus particle count and sanitize surfaces in seconds!
Protect yourself, your clients, patients and staff from dangerous pathogens. UVC Sanitation is like an insurance policy.
Handheld sanitation Devices Details

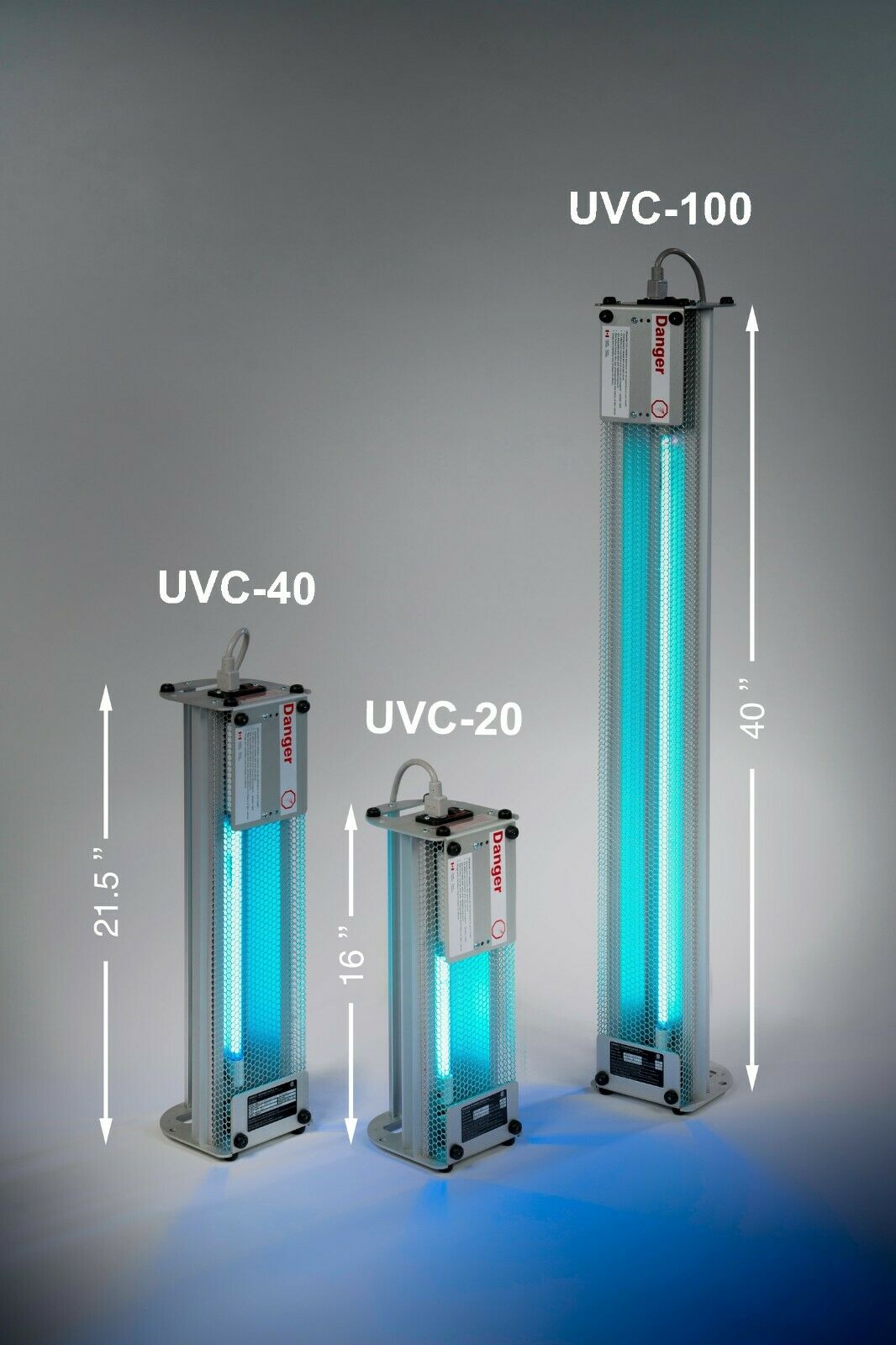

Handheld Trio: 20W, 40W and 100W Models
High-power, handheld UVC wands of different lengths that have a controlled exposure area to protect users. Mainly for surface sanitization of corners, doors, handles, toilets, etc. Devices can also be mounted on a wifi-controlled outlet to be used when no humans are present — either hanging from a ceiling, wall or sitting upright vertically on its balanced supports.
Intended Use
Regulatory Approvals
EPA Registered, Conforms to CSA/NRTL/ANSI, UL1431 standards manufactured with ISO 13485-2016 quality controls. MANUFACTURED IN CANADA
Note: This is not a medical device.
Technical Specifications
Construction: Solid aluminum, with protection grid
Dimensions: 6.5″ x 6.5″ x 40″ (UVC-85); 6.5″ x 6.5″ x 21″ (UVC-40); 6.5″ x 6.5″ x 15″ (UVC-20)
Operation: Standing vertically, hanging, or handheld
Frequency of use: As often as desired
Enclosure: Quartz secondary protection of the lamps with stainless steel cage
Light source: Hard quartz, non-ozone type
Number of lamps: 1 lamp
Power input: 120/240 VAC, 60 Hz/50 Hz
Amperage: 1 Amp @ 120 VAC (UVC-85); 0.5 Amp @ 120 VAC (UVC-40); 0.25 Amp @ 120 VAC (UVC-20)
Power inlet: EMC filtration (hospital grade) at the power inlet
Power cord: Standard, 15 Amp @120 VAC IEC grounded with fuses
Lamp Life: 16,000 hours
Safety devices: Entry fuses, on/off switch, delay timer
Caution
Do not look directly at the lamps without wearing eye protection. Always wear gloves, cover skin and direct away from people and animals. Do not expose skin to the light; it may cause severe burns in a few seconds.
upright room sanitizers DETAILS
Space-500 & Space-1000: UVC Units
These devices are equipped for the security of its users with multiple motion sensors that will shut-off the device in the presence of any motion. The devices all have preset off control that allows the user to set the timing and leave the room without any exposure.
Space-500 model can sanitize any room of 20 feet by 20 feet in minutes.
Space-1000 model has 65″ long vertical lamps to even expose bottom sides of tables, chairs. The device is equipped with patent-pending floor UVC sanitizer that even covers the floor beneath the pedestal.
Space-500 Technical Specifications
Construction: Solid stainless steel
Dimensions: 18″ x 24″ x 79.5″ high
Operation: Timer with delay, so operator can safely leave the room
Frequency of use: As often as desired
Light intensity: 155 microWatt/sqcm @ 8 feet distance
Influenza virus kill rate: 43 seconds @ 8 feet distance, 99.9% effective
Enclosure: Quartz secondary protection of lamps and lamp protection cage
Light source: Hard quartz, non-ozone type
Number of lamps: 4 lamps SHO
Power input: 120 VAC 60 Hz, 230 VAC 50 Hz
Amperage: 4.5 Amps @ 120 VAC, 2.5 Amps @ 230 VAC
Power inlet: EMC filtration (hospital grade) at the power inlet
Power cord: Standard, 15 Amp @120 VAC IEC grounded with fuses
Lamp Life: 16,000 hours
Safety devices: Entry fuses, on/off switch, delay timer
Space-1000 Technical Specifications
Special features: Floor irradiation under equipment base via UVC lamp
Construction: Solid stainless steel and aluminum
Dimensions: 21″ x 19″ x 79.5″ high
Operation: Timer with delay, so operator can safely leave the room
Frequency of use: As often as desired
Light intensity: 185 microWatt/sqcm @ 8 feet distance
Reflector: Super polished UV reflectors
Light source: Hard quartz, non-ozone type
Number of lamps: 5 lamps, Including under unit floor UVC (patent pending)
Power input: 120 VAC 60 Hz, 220 VAC 50 Hz
Amperage: 6.1 Amps @ 120 VAC (model SHO), 3.5 Amps @ 230 VAC 50 Hz
Power inlet: EMC filtration (hospital grade) at the power inlet
Power cord: Standard, 15 Amp @120 VAC IEC grounded with fuses
Lamp Life: 16,000 hours
Safety devices: Entry fuses, on/off switch, delay timer, 360° motion sensor shut off
Intended Use
Caution
Do not look directly at the lamps without wearing eye protection. Do not expose skin to the light; it may cause severe burns in a few seconds.
Regulatory approvals
EPA Registered, Conforms to CSA/NRTL/ANSI, UL1431 standards manufactured with ISO 13485-2016 quality controls.
MANUFACTURED IN CANADA
Note: This is not a medical device.
air duct sanitizers
Air Duct Units: UVC-10 & UVC-15
Air duct mounted UVC devices reduce pathogens in HVAC systems wherever there is a central air-moving system present.
UVC air ducts were originally invented by our manufacturing company and put to use in 1992, supplied to hospices for the critically ill, elder housing facilities, dental clinics, as well as to sick buildings with air quality issues.
How it Works
All microorganisms contain nucleic acid which reacts with UVC at 254 nm range resulting in destruction of DNA of the organism. This process usually takes only a few seconds depending on the intensity of the light source. The result is dependant on the total UVC dosage and the kind of germ that needs to be destroyed.
Since 1992 we have been developing the latest GERM CONTROL for air disinfection and air purification. Our air germ control units use low wattage, high efficiently, long life ultraviolet pure quartz lamps. It is very effective for air and surface disinfection of bacteria viruses, mold spores and protozoa.
Flowing air over the lamp surface allows the high intensity UVC rays to destroy airborne germs. Most odors are the result of the break down of organic material by bacteria. Elimination of the bacteria will also eliminate any odor problems.
Easy to Install
Our standard units can be installed in any heating/cooling/ ventilation system in less than 10 minutes. Simply drill a 2″ diameter hole in the ventilation duct and insert the lamp until the housing is in contact with the duct.
The quartz jacket is telescope type for 2″ in order to make the installation into varying depth of duct sizes.
AIR DISINFECTION
Airborne germs, viruses and mold spores in medical and dental clinics are one of the main reasons for infections. It can be a serious issue for those with compromised immune systems, the elderly and the young children. Infectious agents can enter the body through an injury, open wound or simply by inhalation. UVC-Germ Control units were mainly designed to target and prevent the Legionnaires disease along with many others.
Our scientifically designed UVC Germ Control modules can dramatically cut down the pathogen count in the air. The lower the germ count, the lower the risk of infection.
Germicidal UVC (or GUV) is very effective in fighthing and preventing sick building syndrome.
Caution
Do not look directly at the lamps without wearing eye protection. Do not expose skin to the light; it may cause severe burns in a few seconds.
Regulatory approvals
EPA Registered, Conforms to CSA/NRTL/ANSI, UL1431 standards manufactured with ISO 13485-2016 quality controls.
Note: This is not a medical device.
